Linear Voltage Regulator, 5V fixed output, 1A output current, 2% output voltage accuracy. Features a 35V maximum input voltage, 7.5V minimum input voltage, and 2V dropout voltage. Operates from 0°C to 125°C in a 4-SOT-223 surface mount package. RoHS compliant with 70dB PSRR.
PackageSOT-223
Voltage5V
Current Rating1A
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments LM340MP-5.0/NOPB technical specifications.
General
Accuracy
2%
Package/Case
SOT-223
Current Rating
1A
Dropout Voltage
2V
Lead Free
Lead Free
Max Input Voltage
35V
Min Input Voltage
7.5V
Max Operating Temperature
125°C
Min Operating Temperature
0°C
Max Output Current
1A
Max Output Voltage
5V
Mount
Surface Mount
Nominal Output Voltage
5V
Number of Channels
1
Number of Outputs
1
Number of Regulators
1
Output Configuration
Positive
Output Current
1A
Output Type
Fixed
Output Voltage
5V
Output Voltage Accuracy
2%
Package Quantity
1000
Packaging
Tape and Reel
Polarity
Positive
Power Supply Rejection Ratio (PSRR)
70dB
Quiescent Current
8mA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Termination
SMD/SMT
Thickness
1.6mm
Tolerance
4%
Voltage
5V
Weight
0.006632oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments LM340MP-5.0/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM340MP-5.0/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

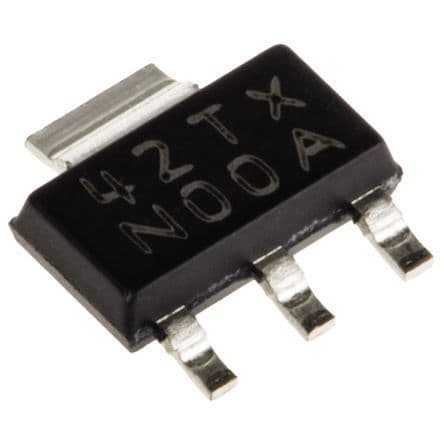

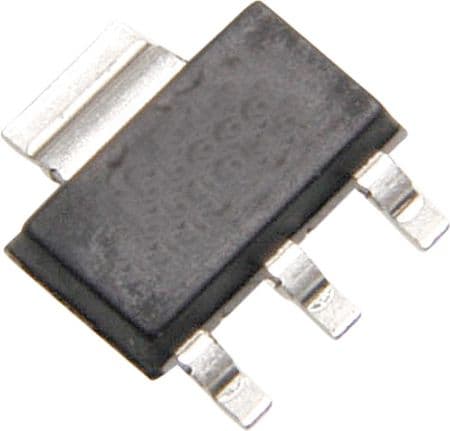

Product Images
