A 1.5-A, 35-V linear voltage regulator with a fixed 5V output. This positive voltage regulator offers a 2% output voltage accuracy and a 2V dropout voltage. Featuring a 1A maximum output current, it operates from a 7.5V to 35V input voltage range. The component is housed in a TO-263 surface-mount package and supports an operating temperature range of 0°C to 125°C.
PackageTO-263
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Texas Instruments LM340SX-5.0/NOPB technical specifications.
General
Accuracy
2%
Package/Case
TO-263
Dropout Voltage
2V
Height
4.57mm
Lead Free
Contains Lead
Length
10.16mm
Max Input Voltage
35V
Min Input Voltage
7.5V
Max Operating Temperature
125°C
Min Operating Temperature
0°C
Max Output Current
1A
Max Output Voltage
5V
Mount
Surface Mount
Nominal Output Voltage
5V
Number of Outputs
1
Number of Regulators
1
Output Configuration
Positive
Output Current
1A
Output Type
Fixed
Output Voltage
5V
Output Voltage Accuracy
2%
Package Quantity
500
Packaging
Tape and Reel
Polarity
Positive
Power Supply Rejection Ratio (PSRR)
80dB
Quiescent Current
8mA
Reach SVHC Compliant
No
RoHS Compliant
Yes
Width
8.64mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments LM340SX-5.0/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM340SX-5.0/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

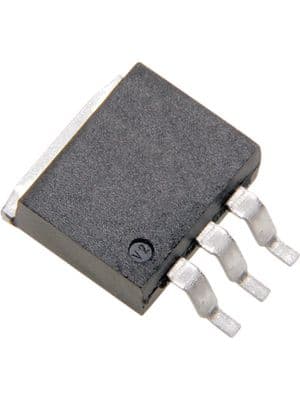

Product Images
