PackageTO-220
MountingThrough Hole
PolarityPositive
Quick Jump:
Technical Specifications
Texas Instruments LM340T-5.0/LF01 technical specifications.
General
Accuracy
2%
Package/Case
TO-220
Dropout Voltage
2V
Lead Free
Contains Lead
Max Input Voltage
35V
Min Input Voltage
7.5V
Max Operating Temperature
125°C
Min Operating Temperature
0°C
Max Output Current
1A
Mount
Through Hole
Number of Outputs
1
Output Current
2.4A
Output Type
Fixed
Output Voltage
5V
Package Quantity
45
Packaging
Rail/Tube
Polarity
Positive
Power Supply Rejection Ratio (PSRR)
80dB
Quiescent Current
8mA
Radiation Hardening
No
RoHS Compliant
Yes
Series
LM340-N
Compliance
RoHS
Compliant
Datasheet
Texas Instruments LM340T-5.0/LF01 Datasheet
Download the complete datasheet for Texas Instruments LM340T-5.0/LF01 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

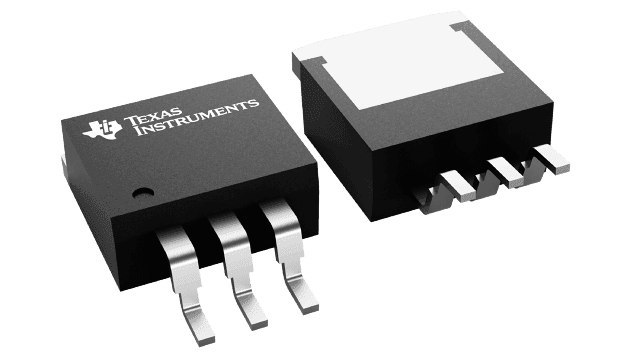

Product Images
