Positive fixed output linear voltage regulator with 3.3V nominal output voltage and 100mA maximum output current. Features a 30V maximum input voltage and a 900mV dropout voltage. Operates across a -40°C to 125°C temperature range with 5% output voltage accuracy. Packaged in a 3-SOT-23 surface mount case.
PackageSOT-23
MountingSurface Mount
PolarityPositive
Power250mW
Quick Jump:
Technical Specifications
Texas Instruments LM3480IM3-3.3/NOPB technical specifications.
General
Accuracy
5%
Package/Case
SOT-23
Dropout Voltage
900mV
Height
0.93mm
Lead Free
Lead Free
Length
2.92mm
Max Input Voltage
30V
Min Input Voltage
0V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
100mA
Max Output Voltage
3.3V
Max Power Dissipation
250mW
Max Supply Voltage
30V
Min Supply Voltage
1.5V
Mount
Surface Mount
Nominal Output Voltage
3.3V
Number of Channels
1
Number of Outputs
1
Number of Regulators
1
Output Configuration
Positive
Output Current
100mA
Output Type
Fixed
Output Voltage
3.3V
Output Voltage Accuracy
5%
Packaging
Tape and Reel
Polarity
Positive
Power Dissipation
250mW
Quiescent Current
4mA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Termination
SMD/SMT
Thickness
1mm
Width
1.3mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments LM3480IM3-3.3/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM3480IM3-3.3/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

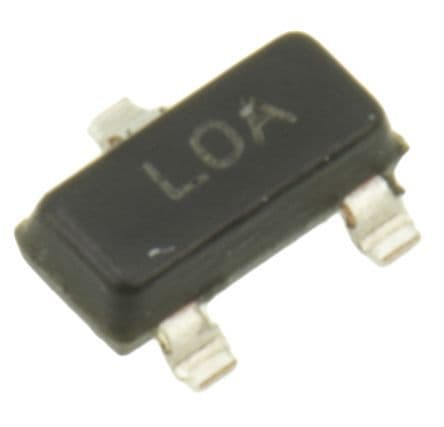

Product Images
