Positive fixed output linear voltage regulator, offering a 5V nominal output with 5% accuracy. Features a 100mA maximum output current and a low dropout voltage of 900mV. Operates with a maximum input voltage of 30V and a minimum supply voltage of 1.5V. This surface mount component is housed in a SOT-23 package, with dimensions of 2.92mm length, 1.3mm width, and 0.93mm height. Rated for operation from -40°C to 125°C with a maximum power dissipation of 250mW.
PackageSOT-23
MountingSurface Mount
PolarityPositive
Power250mW
Quick Jump:
Technical Specifications
Texas Instruments LM3480IM3-5.0/NOPB technical specifications.
General
Accuracy
5%
Package/Case
SOT-23
Dropout Voltage
900mV
Height
0.93mm
Lead Free
Lead Free
Length
2.92mm
Max Input Voltage
30V
Min Input Voltage
0V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
100mA
Max Power Dissipation
250mW
Max Supply Voltage
30V
Min Supply Voltage
1.5V
Mount
Surface Mount
Nominal Output Voltage
5V
Number of Outputs
1
Output Current
100mA
Output Type
Fixed
Output Voltage
5V
Output Voltage Accuracy
5%
Package Quantity
1000
Packaging
Tape and Reel
Polarity
Positive
Power Dissipation
250mW
Quiescent Current
4mA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Termination
SMD/SMT
Width
1.3mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments LM3480IM3-5.0/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM3480IM3-5.0/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

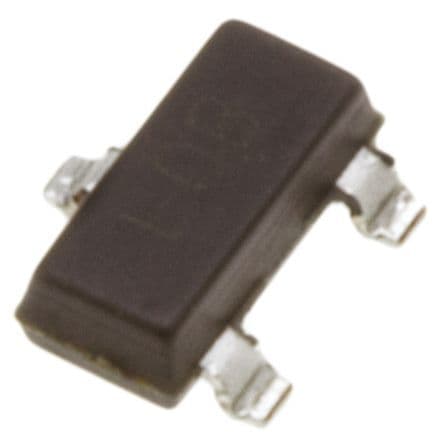

Product Images
