The LM3503ITL-44 is a dual boost driver IC with a maximum output voltage of 42V and an output current of 20mA. It operates at a frequency of 1.2MHz and has a supply voltage range of 2.5-5.5V. The device is packaged in a 44-pin VFBGA package and is suitable for surface mount applications. The LM3503ITL-44 is rated for operation over a temperature range of -40°C to 85°C.
Frequency1.2MHz
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments LM3503ITL-44 technical specifications.
General
| Frequency | 1.2MHz |
| Max Input Voltage | 5.5V |
| Min Input Voltage | 2.5V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Voltage | 44V |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 2.5V |
| Mount | Surface Mount |
| Number of Outputs | 2 |
| Number of Segments | 10 |
| Output Current | 20mA |
| Output Voltage | 42V |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | No |
| Topology | Boost |
Compliance
| RoHS | Not CompliantNo |
Datasheet
Texas Instruments LM3503ITL-44 Datasheet
Download the complete datasheet for Texas Instruments LM3503ITL-44 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

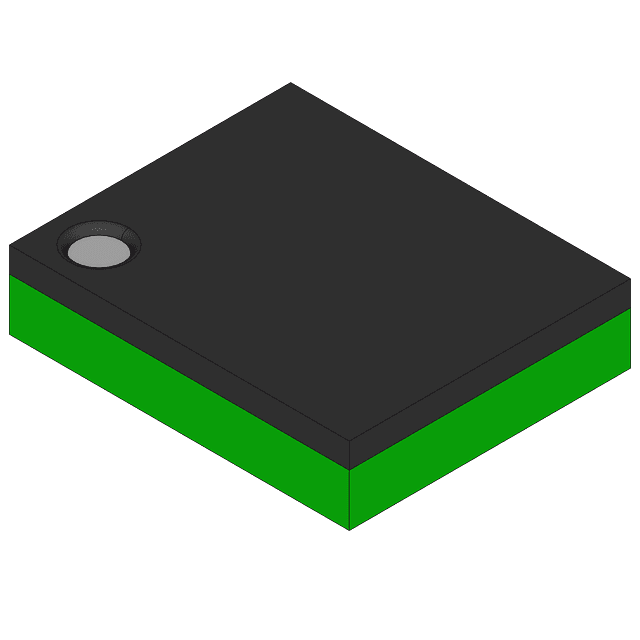

Product Images
