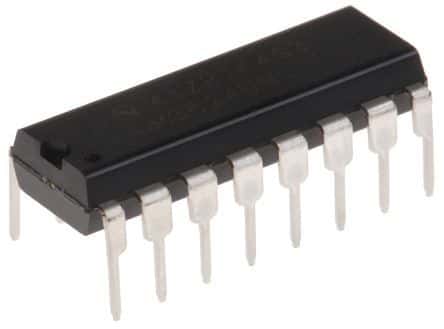

Voltage mode PWM controller featuring a 350kHz switching frequency and a maximum output current of 200mA. Operates with a supply voltage range of 8V to 40V, delivering up to 60V output. Includes a 5V reference voltage and a 49% maximum duty cycle. Designed for through-hole mounting in a 16-pin PDIP package, supporting flyback and push-pull topologies. RoHS compliant with a temperature range of 0°C to 80°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Texas Instruments LM3524DN/NOPB datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | PDIP |
| Clock Sync | No |
| Duty Cycle | 49% |
| Fall Time | 100ns |
| Frequency | 350kHz |
| Height | 3.3mm |
| Lead Free | Lead Free |
| Length | 19.05mm |
| Max Duty Cycle | 49% |
| Max Operating Temperature | 80°C |
| Min Operating Temperature | 0°C |
| Max Supply Voltage | 40V |
| Min Supply Voltage | 8V |
| Mount | Through Hole |
| Number of Output Phases | 1 |
| Number of Outputs | 1 |
| Output Current | 200mA |
| Output Voltage | 60V |
| Packaging | Rail/Tube |
| Quiescent Current | 5mA |
| Reach SVHC Compliant | No |
| Reference Voltage | 5V |
| RoHS Compliant | Yes |
| Synchronous Rectifier | No |
| Topology | Flyback, Push-Pull |
| Width | 6.35mm |
| RoHS | Compliant |
