Texas Instruments
LM3555TLX/NOPB
Synchronous boost converter with 500 mA high side LED driver and dual-Mode control interface 12-DSBGA -30 to 85
PackageSMD/SMT
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments LM3555TLX/NOPB technical specifications.
General
Package/Case
SMD/SMT
Features
OVP
Lead Free
Lead Free
Max Input Voltage
5.5V
Min Input Voltage
2.5V
Max Operating Temperature
85°C
Min Operating Temperature
-30°C
Max Output Current
400mA
Mount
Surface Mount
Nominal Supply Current
3.5mA
Number of Outputs
1
Packaging
Tape and Reel
Quiescent Current
3.5mA
Radiation Hardening
No
RoHS Compliant
Yes
Series
LM3555
Topology
Boost
Compliance
RoHS
Compliant
Datasheet
Texas Instruments LM3555TLX/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM3555TLX/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

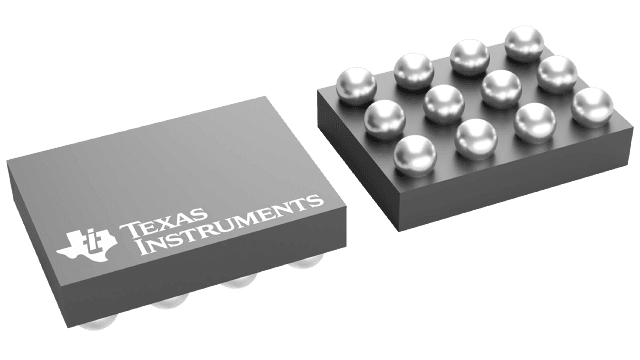

Product Images
