Dual-channel operational amplifier featuring a 1MHz bandwidth and 100dB voltage gain. This general-purpose op amp operates from a 1.5V to 32V supply range, with a maximum dual supply voltage of 16V. It offers a 0.1V/µs slew rate and 100nA input bias current, housed in a surface-mount SOIC package. With a 65dB common mode rejection ratio and 65dB power supply rejection ratio, it is suitable for operation between 0°C and 70°C.
PackageSOIC
Current500uA
MountingSurface Mount
Power530mW
Quick Jump:
Technical Specifications
Texas Instruments LM358AM/NOPB technical specifications.
General
Amplifier Type
GENERAL PURPOSE
Bandwidth
1MHz
Package/Case
SOIC
Common Mode Rejection Ratio
65dB
Dual Supply Voltage
9V
Gain Bandwidth Product
1MHz
Height
1.45mm
Input Bias Current
100nA
Input Offset Voltage (Vos)
3mV
Lead Free
Lead Free
Length
4.9mm
Max Dual Supply Voltage
16V
Min Dual Supply Voltage
1.5V
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Power Dissipation
530mW
Max Supply Current
1.2mA
Max Supply Voltage
32V
Min Supply Voltage
3V
Mount
Surface Mount
Number of Amplifiers
2
Number of Channels
2
Number of Circuits
2
Number of Elements
2
Operating Supply Current
1mA
Operating Supply Voltage
16V
Output Current
30mA
Output Current per Channel
40mA
Package Quantity
95
Packaging
Rail/Tube
Power Dissipation
530mW
Power Supply Rejection Ratio (PSRR)
65dB
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Slew Rate
0.1V/µs
Supply Current
500uA
Technology
BIPOLAR
Thickness
1.58mm
Unity Gain Bandwidth Product
1MHz
Voltage Gain
100dB
Width
3.9mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments LM358AM/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM358AM/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

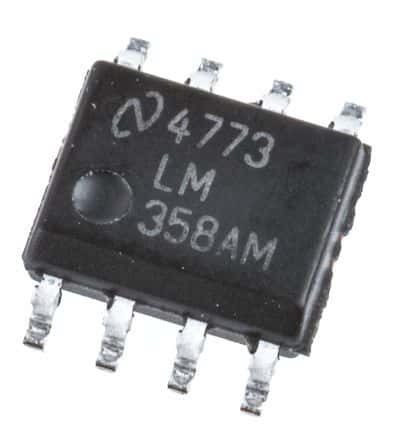

Product Images
