Dual operational amplifier IC, surface mountable in an 8-VSSOP package. Features a 700kHz bandwidth and 0.3V/µs slew rate. Operates with a minimum supply voltage of 1.5V and a maximum of 32V, with a typical operating supply voltage of 16V. Offers a voltage gain of 100dB and a common mode rejection ratio of 65dB. Input bias current is 250nA, with an input offset voltage of 7mV.
PackageVSSOP
Current1.2mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments LM358DGKR technical specifications.
General
Amplifier Type
GENERAL PURPOSE
Bandwidth
700kHz
Package/Case
VSSOP
Common Mode Rejection Ratio
65dB
Gain Bandwidth Product
700kHz
Input Bias Current
250nA
Input Offset Voltage (Vos)
7mV
Lead Free
Lead Free
Max Dual Supply Voltage
16V
Min Dual Supply Voltage
1.5V
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Supply Voltage
32V
Min Supply Voltage
3V
Mount
Surface Mount
Number of Amplifiers
2
Number of Channels
2
Number of Circuits
2
Number of Elements
2
Operating Supply Current
1mA
Operating Supply Voltage
16V
Output Current
30mA
Output Current per Channel
30mA
Package Quantity
2500
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
Response Time
4us
RoHS Compliant
Yes
Slew Rate
0.3V/µs
Supply Current
1.2mA
Technology
BIPOLAR
Thickness
970um
Unity Gain Bandwidth Product
700kHz
Voltage Gain
100dB
Compliance
RoHS
Compliant
Datasheet
Texas Instruments LM358DGKR Datasheet
Download the complete datasheet for Texas Instruments LM358DGKR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

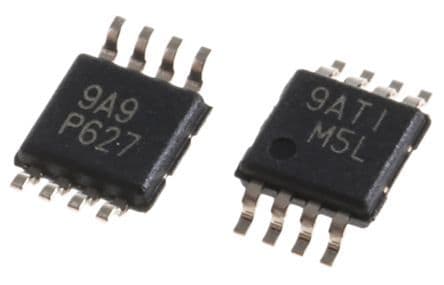

Product Images
