Dual-channel, general-purpose operational amplifier with a 1MHz bandwidth and 1MHz gain bandwidth product. Features a 32V maximum supply voltage and operates from a 1.5V to 16V dual supply. This surface-mount device in an 8-SOIC package offers a 100dB voltage gain and a 0.1V/µs slew rate, with a maximum power dissipation of 530mW. Common mode rejection ratio and power supply rejection ratio are both 65dB.
PackageSOIC
Current500uA
MountingSurface Mount
Power530mW
Quick Jump:
Technical Specifications
Texas Instruments LM358M/NOPB technical specifications.
General
Amplifier Type
GENERAL PURPOSE
Bandwidth
1MHz
Package/Case
SOIC
Common Mode Rejection Ratio
65dB
Dual Supply Voltage
9V
Gain Bandwidth Product
1MHz
Height
1.45mm
Input Bias Current
250nA
Input Offset Voltage (Vos)
7mV
Lead Free
Lead Free
Length
4.9mm
Max Dual Supply Voltage
16V
Min Dual Supply Voltage
1.5V
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Power Dissipation
530mW
Max Supply Current
1.2mA
Max Supply Voltage
32V
Min Supply Voltage
3V
Mount
Surface Mount
Number of Amplifiers
2
Number of Channels
2
Number of Circuits
2
Number of Elements
2
Operating Supply Current
1mA
Operating Supply Voltage
16V
Output Current
30mA
Output Current per Channel
40mA
Package Quantity
95
Packaging
Rail/Tube
Power Dissipation
530mW
Power Supply Rejection Ratio (PSRR)
65dB
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Slew Rate
0.1V/µs
Supply Current
500uA
Technology
BIPOLAR
Thickness
1.58mm
Unity Gain Bandwidth Product
1MHz
Voltage Gain
100dB
Width
3.9mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments LM358M/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM358M/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

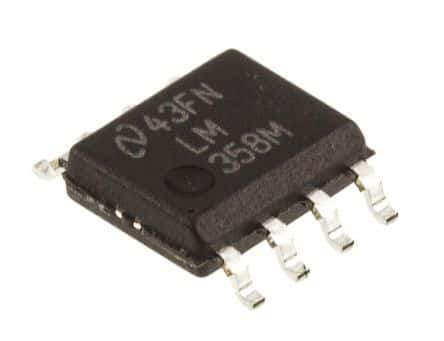

Product Images
