Dual general-purpose operational amplifier featuring a 700kHz bandwidth and 0.3V/µs slew rate. This surface-mount device, housed in an 8-TSSOP package, operates with a supply voltage range of 3V to 32V, supporting dual supplies from 1.5V to 16V. It offers a voltage gain of 100dB and a common-mode rejection ratio of 65dB, with a typical operating supply current of 1mA. Designed for general-purpose applications, this RoHS compliant component provides two independent amplifier channels.
PackageTSSOP
Current1.2mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments LM358PWR technical specifications.
General
Amplifier Type
GENERAL PURPOSE
Bandwidth
700kHz
Package/Case
TSSOP
Common Mode Rejection Ratio
65dB
Gain Bandwidth Product
700kHz
Input Bias Current
250nA
Input Offset Voltage (Vos)
7mV
Lead Free
Lead Free
Max Dual Supply Voltage
16V
Min Dual Supply Voltage
1.5V
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Supply Voltage
32V
Min Supply Voltage
3V
Mount
Surface Mount
Number of Amplifiers
2
Number of Channels
2
Number of Circuits
2
Number of Elements
2
Operating Supply Current
1mA
Operating Supply Voltage
16V
Output Current
30mA
Output Current per Channel
30mA
Package Quantity
1
Packaging
Tape and Reel
Quiescent Current
600mA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Slew Rate
0.3V/µs
Supply Current
1.2mA
Technology
BIPOLAR
Unity Gain Bandwidth Product
700kHz
Voltage Gain
100dB
Compliance
RoHS
Compliant
Datasheet
Texas Instruments LM358PWR Datasheet
Download the complete datasheet for Texas Instruments LM358PWR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

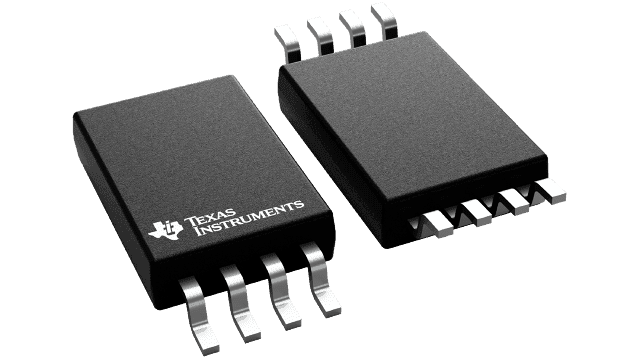

Product Images
