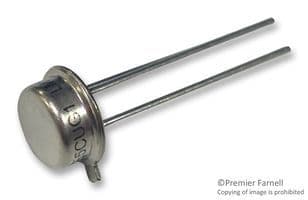

Analog temperature sensor with a ±0.5°C accuracy, operating from a 4V to 30V supply range. Features a linear voltage output and a low quiescent current of 56µA. Designed for through-hole mounting in a TO-46 package, this RoHS compliant component offers a wide operating temperature range from -40°C to 110°C.
PackageTO-46
MountingThrough Hole
Quick Jump:
Technical Specifications
Texas Instruments LM35DH/NOPB technical specifications.
General
Package/Case
TO-46
Interface
Analog
Lead Free
Lead Free
Max Operating Temperature
110°C
Min Operating Temperature
-40°C
Max Supply Voltage
30V
Min Supply Voltage
4V
Mount
Through Hole
Nominal Supply Current
56.2uA
Output Current
10mA
Output Type
Voltage, Analog Voltage, Analog
Output Voltage
6V
Packaging
Bulk
Quiescent Current
56uA
Reach SVHC Compliant
No
RoHS Compliant
Yes
Compliance
RoHS
Compliant
Datasheet
Texas Instruments LM35DH/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM35DH/NOPB to view detailed technical specifications.
