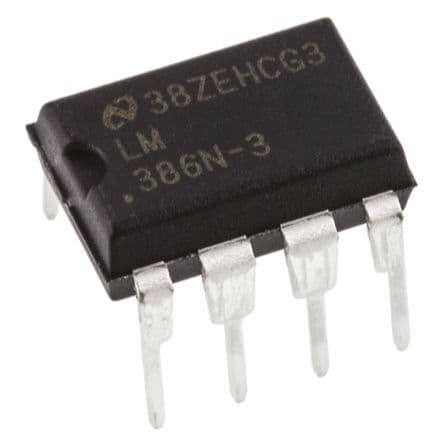

Low power audio amplifier IC featuring 1W output power and 20dB internal gain. Operates with a single supply voltage from 4V to 12V, offering a wide input voltage range. Bandwidth extends to 300kHz with a low quiescent current of 4mA. Packaged in an 8-PDIP with dimensions of 9.27mm length, 6.35mm width, and 3.3mm height. Suitable for applications within a 0°C to 70°C operating temperature range.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Texas Instruments LM386N-3/NOPB datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Bandwidth | 300kHz |
| Package/Case | P |
| Gain | 20dB |
| Height | 3.3mm |
| Input Bias Current | 250nA |
| Lead Free | Lead Free |
| Length | 9.27mm |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Output Power | 700mW |
| Max Power Dissipation | 1.25W |
| Max Supply Voltage | 12V |
| Min Supply Voltage | 4V |
| Number of Channels | 1 |
| Output Power | 1W |
| Package Quantity | 40 |
| Packaging | Rail/Tube |
| Power Dissipation | 1.25W |
| Power Supply Rejection Ratio (PSRR) | 50dB |
| Quiescent Current | 4mA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Supply Current | 4mA |
| Supply Type | Single |
| Width | 6.35mm |
| RoHS | Compliant |
