Dual comparator IC featuring Rail-to-Rail output and 2 channels. Operates with a dual supply voltage range from 1V to 18V, or a single supply from 2V to 30V, with a maximum operating supply voltage of 28V. Offers a fast response time of 0.3µs, 6mA output current per channel, and a voltage gain of 106.02dB. Packaged in an 8-pin SOIC surface-mount case, this RoHS compliant component is suitable for a wide range of applications.
PackageSOIC
Current500uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments LM393D technical specifications.
General
| Package/Case | SOIC |
| Dual Supply Voltage | 9V |
| Height | 1.58mm |
| Input Bias Current | 250nA |
| Input Offset Voltage (Vos) | 5mV |
| Lead Free | Lead Free |
| Length | 4.9mm |
| Max Dual Supply Voltage | 18V |
| Min Dual Supply Voltage | 1V |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Supply Current | 500uA |
| Max Supply Voltage | 30V |
| Min Supply Voltage | 2V |
| Mount | Surface Mount |
| Number of Channels | 2 |
| Number of Elements | 2 |
| Operating Supply Voltage | 28V |
| Output Current | 20mA |
| Output Current per Channel | 6mA |
| Output Type | TTL |
| Package Quantity | 75 |
| Packaging | Rail/Tube |
| Quiescent Current | 2.5mA |
| Reach SVHC Compliant | No |
| Response Time | 0.3us |
| RoHS Compliant | Yes |
| Series | LM393 |
| Supply Current | 500uA |
| Technology | BIPOLAR |
| Thickness | 1.58mm |
| Voltage Gain | 106.02dB |
| Weight | 0.002561oz |
| Width | 3.91mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments LM393D Datasheet
Download the complete datasheet for Texas Instruments LM393D to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

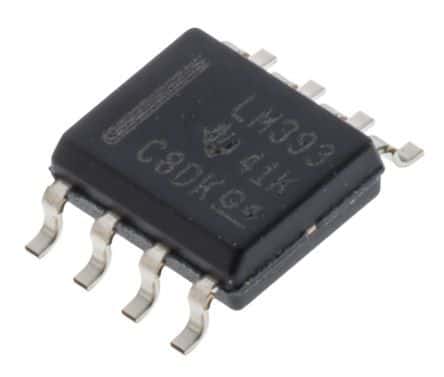

Product Images
