Texas Instruments
LM393TL
DUAL COMPARATOR, 9000uV OFFSET-MAX, 1300ns RESPONSE TIME, PBGA8, 0.012 INCH, MICRO, SMD-8
Current1mA
MountingSurface Mount
Power568mW
Quick Jump:
Technical Specifications
Texas Instruments LM393TL technical specifications.
General
| Input Bias Current | 250nA |
| Input Offset Voltage (Vos) | 5mV |
| Max Dual Supply Voltage | 18V |
| Min Dual Supply Voltage | 1V |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Supply Voltage | 36V |
| Min Supply Voltage | 2V |
| Mount | Surface Mount |
| Number of Elements | 2 |
| Output Current | 16mA |
| Output Type | TTL |
| Packaging | Tape and Reel |
| Power Dissipation | 568mW |
| Propagation Delay | 700ns |
| Quiescent Current | 2.5mA |
| Radiation Hardening | No |
| Response Time | 1.3us |
| RoHS Compliant | No |
| Supply Current | 1mA |
| Technology | BIPOLAR |
| Type | General Purpose |
| Voltage Gain | 106.02dB |
Compliance
| RoHS | Not CompliantNo |
Datasheet
Texas Instruments LM393TL Datasheet
Download the complete datasheet for Texas Instruments LM393TL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

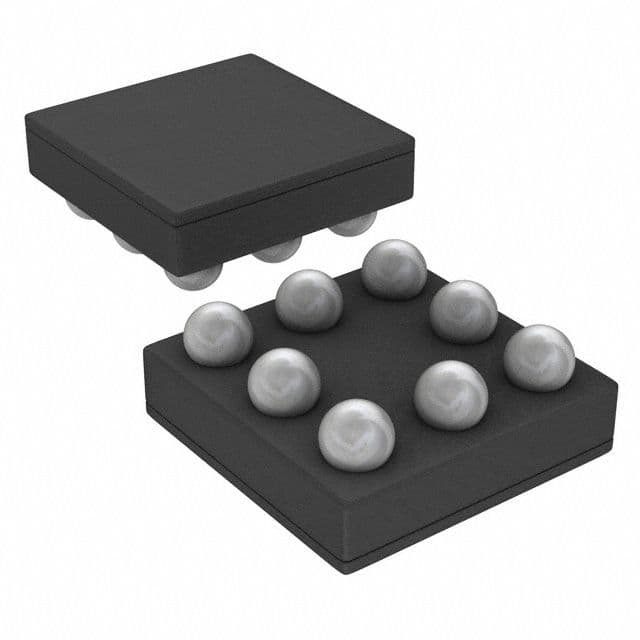

Product Images
