1-A positive fixed output linear voltage regulator with a 3.3V nominal output voltage. Features a low dropout voltage of 500mV and a maximum input voltage of 7.5V, operating from a minimum of 4.5V. Delivers up to 1A output current with 2.5% accuracy. Packaged in a 4-SOT-223 surface mount case, suitable for operation between -40°C and 125°C.
PackageSOT-223
Current Rating1A
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Texas Instruments LM3940IMP-3.3/NOPB technical specifications.
General
Accuracy
2.5%
Package/Case
SOT-223
Current Rating
1A
Dropout Voltage
500mV
Lead Free
Lead Free
Max Input Voltage
7.5V
Min Input Voltage
4.5V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
1A
Max Output Voltage
3.3V
Max Supply Voltage
7.5V
Min Supply Voltage
4.5V
Mount
Surface Mount
Nominal Output Voltage
3.3V
Number of Channels
1
Number of Outputs
1
Number of Regulators
1
Output Configuration
Positive
Output Current
1A
Output Type
Fixed
Output Voltage
3.3V
Package Quantity
1000
Packaging
Tape and Reel
Polarity
Positive
Quiescent Current
15mA
Radiation Hardening
No
Reach SVHC Compliant
No
Termination
SMD/SMT
Thickness
1.6mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments LM3940IMP-3.3/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM3940IMP-3.3/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

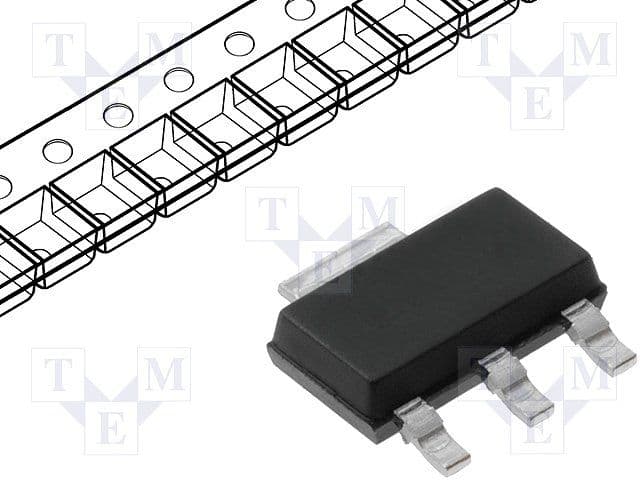

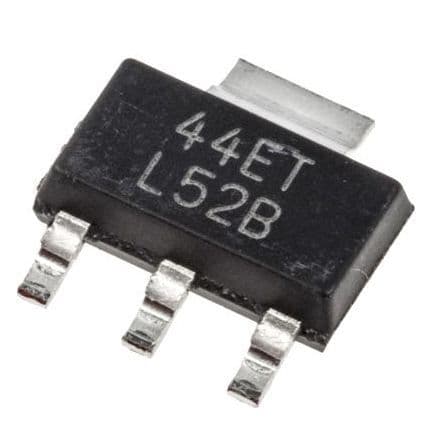

Product Images
