Precision 2.5V shunt voltage reference, offering a stable 2.5V output with 0.1% tolerance. Features a maximum output current of 15mA and a low cathode current of 65µA. This surface mount component is housed in a compact SOT-23 package, measuring 2.92mm x 1.3mm x 0.93mm. Operating across a temperature range of -40°C to 85°C, it is RoHS compliant and supplied in tape and reel packaging.
PackageSOT-23
Current60uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments LM4040AIM3-2.5/NOPB technical specifications.
General
Package/Case
SOT-23
Cathode Current
65uA
Height
0.93mm
Lead Free
Lead Free
Length
2.92mm
Max Input Voltage
2.5V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
15mA
Max Output Voltage
2.5V
Min Output Voltage
2.5V
Max Power Dissipation
306mW
Mount
Surface Mount
Number of Channels
1
Output Current
15mA
Output Type
Fixed
Output Voltage
2.5V
Package Quantity
1000
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
Reference Type
Shunt, Fixed
Reference Voltage
2.5V
RoHS Compliant
Yes
Supply Current
60uA
Termination
SMD/SMT
Tolerance
0.1%
Width
1.3mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments LM4040AIM3-2.5/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM4040AIM3-2.5/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

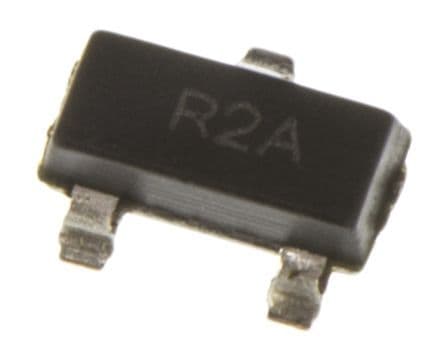

Product Images
