3V precision micropower shunt voltage reference, SOT-23 package, offering 0.1% tolerance and 100-ppm/°C stability. Features a 37V maximum input voltage and a 15mA maximum output current. Operates across a -40°C to 85°C temperature range. Surface mountable with tape and reel packaging.
PackageSOT-23
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments LM4040AIM3-3.0/NOPB technical specifications.
General
Package/Case
SOT-23
Cathode Current
67uA
Height
0.93mm
Lead Free
Lead Free
Length
2.92mm
Max Input Voltage
37V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
15mA
Max Output Voltage
3V
Min Output Voltage
3V
Mount
Surface Mount
Output Current
15mA
Output Type
Fixed
Output Voltage
3V
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
Reference Type
Shunt, Fixed
Reference Voltage
3V
RoHS Compliant
Yes
Thickness
1mm
Tolerance
0.1%
Weight
0.00709oz
Width
1.3mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments LM4040AIM3-3.0/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM4040AIM3-3.0/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

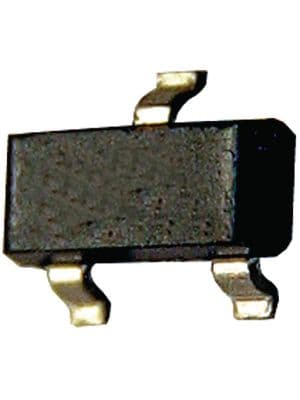

Product Images
