Precision micropower shunt voltage reference offering a fixed 5V output with 0.1% tolerance. Features 100-ppm/°C stability and operates with a cathode current of 80µA. Designed for surface mount applications in a SOT-23 package, this component supports an output current up to 15mA and a maximum input voltage of 5V. It is RoHS compliant and suitable for operation across a temperature range of -40°C to 85°C.
PackageSOT-23
Current Rating15A
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments LM4040AIM3-5.0/NOPB technical specifications.
General
Package/Case
SOT-23
Cathode Current
80uA
Current Rating
15A
Height
0.93mm
Lead Free
Lead Free
Length
2.92mm
Max Input Voltage
5V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
15mA
Max Output Voltage
5V
Min Output Voltage
5V
Mount
Surface Mount
Nominal Supply Current
60mA
Number of Channels
1
Output Current
15mA
Output Type
Fixed
Output Voltage
5V
Package Quantity
1000
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
Reference Type
Shunt, Fixed
Reference Voltage
5V
RoHS Compliant
Yes
Termination
SMD/SMT
Tolerance
0.1%
Width
1.3mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments LM4040AIM3-5.0/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM4040AIM3-5.0/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

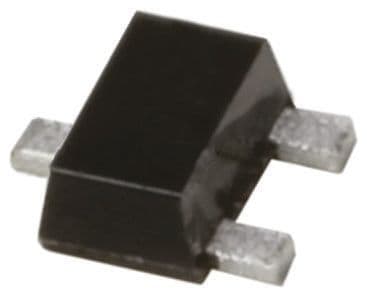

Product Images
