Precision micropower shunt voltage reference, fixed 3V output with 0.2% tolerance. Features 100-ppm/°C temperature stability and a wide operating temperature range of -40°C to 85°C. Designed for surface mount applications in a SOT-23 package, supporting up to 15mA output current with a 67µA cathode current. This RoHS compliant component is supplied in tape and reel packaging.
PackageSOT-23
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments LM4040BIM3-3.0/NOPB technical specifications.
General
Package/Case
SOT-23
Cathode Current
67uA
Height
1.02mm
Lead Free
Lead Free
Length
3.04mm
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
15mA
Max Output Voltage
3V
Min Output Voltage
3V
Mount
Surface Mount
Number of Channels
1
Output Current
15mA
Output Type
Fixed
Output Voltage
3V
Package Quantity
1000
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
Reference Type
Shunt, Fixed
Reference Voltage
3V
RoHS Compliant
Yes
Tolerance
0.2%
Width
1.4mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments LM4040BIM3-3.0/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM4040BIM3-3.0/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

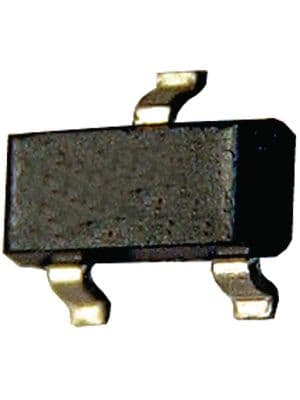

Product Images
