Precision 2.5V shunt voltage reference, offering a fixed output voltage of 2.5V with a tight 0.5% tolerance. Designed for surface mount applications, this component operates with a cathode current range of 65µA and a maximum output current of 15mA. Housed in a compact SOT-23 package, it features a maximum input voltage of 2.5V and a maximum power dissipation of 306mW, with an operating temperature range of -40°C to 85°C. This RoHS compliant device is supplied in tape and reel packaging.
PackageSOT-23
Current60uA
Current Rating15A
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments LM4040CIM3-2.5/NOPB technical specifications.
General
Package/Case
SOT-23
Cathode Current
65uA
Current Rating
15A
Height
0.93mm
Lead Free
Lead Free
Length
2.92mm
Max Input Voltage
2.5V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
15mA
Max Output Voltage
2.5V
Min Output Voltage
2.5V
Max Power Dissipation
306mW
Mount
Surface Mount
Number of Channels
1
Output Current
15mA
Output Type
Fixed
Output Voltage
2.5V
Package Quantity
1000
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
Reference Type
Shunt, Fixed
Reference Voltage
2.5V
RoHS Compliant
Yes
Supply Current
60uA
Termination
SMD/SMT
Tolerance
0.5%
Width
1.3mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments LM4040CIM3-2.5/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM4040CIM3-2.5/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

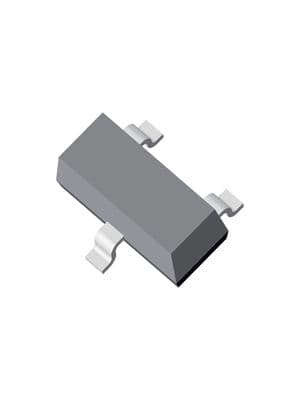

Product Images
