Precision micropower shunt voltage reference, 3V fixed output, 0.5% tolerance, and 100-ppm/°C temperature coefficient. Designed for surface mount applications in a SOT-23 package, this component operates with a cathode current as low as 65µA and supports an output current up to 15mA. Features include lead-free and RoHS compliance, with an operating temperature range of -40°C to 85°C.
PackageSOT-23
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments LM4040CIM3-3.0/NOPB technical specifications.
General
Package/Case
SOT-23
Cathode Current
65uA
Height
0.93mm
Lead Free
Lead Free
Length
2.92mm
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
15mA
Max Output Voltage
3V
Min Output Voltage
3V
Mount
Surface Mount
Output Current
15mA
Output Type
Fixed
Packaging
Tape and Reel
Reach SVHC Compliant
No
Reference Type
Shunt, Fixed
Reference Voltage
3V
RoHS Compliant
Yes
Tolerance
0.5%
Width
1.3mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments LM4040CIM3-3.0/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM4040CIM3-3.0/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

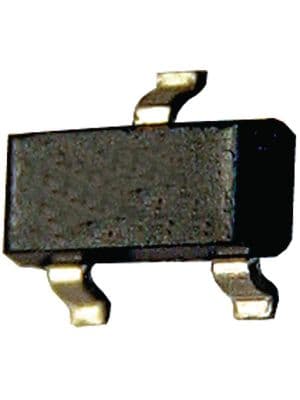

Product Images
