Precision micropower shunt voltage reference with a fixed 4.096V output and 0.5% tolerance. Features 100-ppm/°C temperature stability, operating from a 4.1V maximum input. Designed for surface mount applications in a SOT-23 package, this component offers a 15mA maximum output current and 60µA supply current. Suitable for a wide operating temperature range of -40°C to 85°C.
PackageSOT-23
Current60uA
Current Rating15A
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments LM4040CIM3-4.1/NOPB technical specifications.
General
Package/Case
SOT-23
Cathode Current
73uA
Current Rating
15A
Height
0.93mm
Lead Free
Lead Free
Length
2.92mm
Max Input Voltage
4.1V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
15mA
Max Output Voltage
4.096V
Min Output Voltage
4.096V
Max Power Dissipation
306mW
Mount
Surface Mount
Number of Channels
1
Output Current
15mA
Output Type
Fixed
Output Voltage
4.096V
Package Quantity
1000
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
Reference Type
Shunt
Reference Voltage
4.096V
RoHS Compliant
Yes
Supply Current
60uA
Termination
SMD/SMT
Tolerance
0.5%
Width
1.3mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments LM4040CIM3-4.1/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM4040CIM3-4.1/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

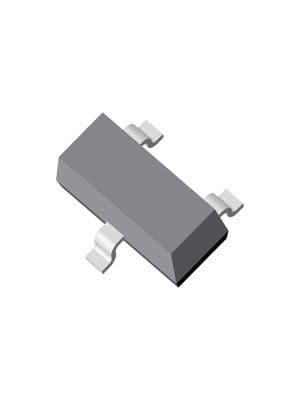

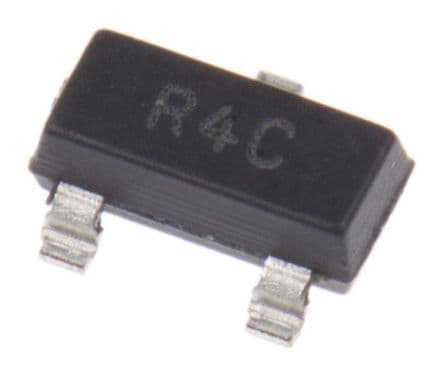

Product Images
