Texas Instruments
LM4040D20QDBZT
Fixed voltage, 45-µA, precision micropower shunt voltage reference 3-SOT-23 -40 to 125
PackageSOT-23-3
Quick Jump:
Technical Specifications
Texas Instruments LM4040D20QDBZT technical specifications.
General
| Package/Case | SOT-23-3 |
| Cathode Current | 80uA |
| Lead Free | Lead Free |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 15mA |
| Min Output Voltage | 2.048V |
| Number of Channels | 1 |
| Output Current | 15mA |
| Output Type | Fixed |
| Output Voltage | 2.048V |
| Package Quantity | 250 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reference Type | Shunt |
| Reference Voltage | 2.048V |
| RoHS Compliant | Yes |
| Tolerance | 1% |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments LM4040D20QDBZT Datasheet
Download the complete datasheet for Texas Instruments LM4040D20QDBZT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

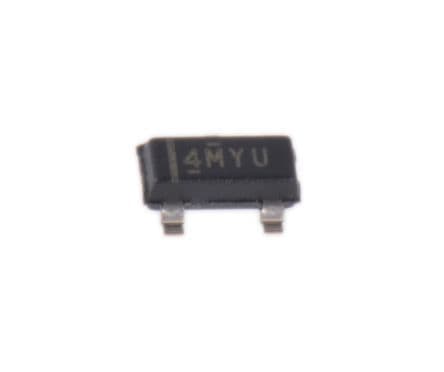

Product Images
