10V fixed shunt voltage reference, ideal for precision micropower applications. Features 100-ppm/°C temperature stability and a low cathode current of 110µA. Operates over a wide temperature range of -40°C to 85°C with a maximum output current of 15mA. Packaged in a compact SOT-23 surface-mount case, this RoHS compliant component offers a 1% tolerance.
PackageSOT-23
Current Rating15A
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments LM4040DIM3-10.0/NOPB technical specifications.
General
Package/Case
SOT-23
Cathode Current
110uA
Current Rating
15A
Height
0.93mm
Lead Free
Lead Free
Length
2.92mm
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
15mA
Max Output Voltage
10V
Min Output Voltage
10V
Max Power Dissipation
306mW
Mount
Surface Mount
Nominal Supply Current
65mA
Number of Channels
1
Output Current
15mA
Output Type
Fixed
Output Voltage
10V
Package Quantity
1000
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
Reference Type
Shunt, Fixed
Reference Voltage
10V
RoHS Compliant
Yes
Termination
SMD/SMT
Thickness
1mm
Tolerance
1%
Width
1.3mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments LM4040DIM3-10.0/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM4040DIM3-10.0/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

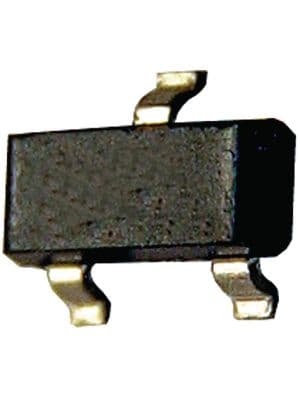

Product Images
