2.5V precision micropower shunt voltage reference, offering 100-ppm/°C temperature stability. Features a fixed 2.5V output voltage with 1% tolerance, capable of handling up to 15mA output current. Designed for surface mount applications in a compact SOT-23 package, operating from -40°C to 85°C. Requires a minimum cathode current of 70µA for stable operation.
PackageSOT-23
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments LM4040DIM3-2.5/NOPB technical specifications.
General
Package/Case
SOT-23
Cathode Current
70uA
Height
0.93mm
Lead Free
Lead Free
Length
2.92mm
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
15mA
Max Output Voltage
2.5V
Min Output Voltage
2.5V
Mount
Surface Mount
Output Current
15mA
Output Type
Fixed
Output Voltage
2.5V
Package Quantity
1000
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
Reference Type
Shunt
Reference Voltage
2.5V
RoHS Compliant
Yes
Tolerance
1%
Weight
0.00709oz
Width
1.3mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments LM4040DIM3-2.5/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM4040DIM3-2.5/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

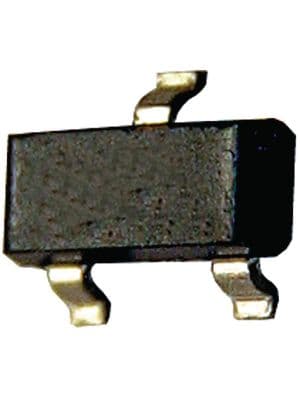

Product Images
