Precision micropower shunt voltage reference, outputting a fixed 5V with 1% tolerance. Features 100-ppm/°C temperature stability and operates with a cathode current of 85µA. Maximum output current is 15mA, with a maximum input voltage of 5V. Surface mountable in a SOT-23 package, this component offers a wide operating temperature range from -40°C to 85°C.
PackageSOT-23
Voltage5V
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments LM4040DIM3-5.0/NOPB technical specifications.
General
Package/Case
SOT-23
Cathode Current
85uA
Height
0.93mm
Lead Free
Lead Free
Length
2.92mm
Max Input Voltage
5V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
15mA
Max Output Voltage
5V
Min Output Voltage
5V
Mount
Surface Mount
Nominal Supply Current
15mA
Number of Channels
1
Output Current
15mA
Output Type
Fixed
Output Voltage
5V
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
Reference Type
Shunt
Reference Voltage
5V
Tolerance
1%
Voltage
5V
Weight
0.00709oz
Width
1.3mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments LM4040DIM3-5.0/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM4040DIM3-5.0/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

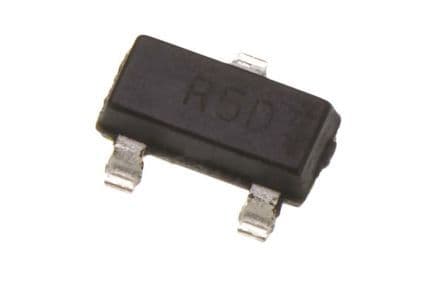

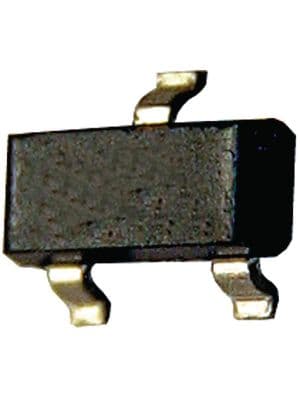

Product Images
