Precision 10V shunt voltage reference, fixed output type, offering a 1% tolerance. Features a 15mA maximum output current and operates with a cathode current of 110µA. Packaged in a 3-pin TO-92 through-hole mount, this component is RoHS compliant and lead-free. Operating temperature range spans from -40°C to 85°C.
PackageTO-92
Current Rating15mA
MountingThrough Hole
Quick Jump:
Technical Specifications
Texas Instruments LM4040DIZ-10.0/NOPB technical specifications.
General
Package/Case
TO-92
Cathode Current
110uA
Current Rating
15mA
Height
5.2mm
Lead Free
Lead Free
Length
5.2mm
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
15mA
Max Output Voltage
10V
Min Output Voltage
10V
Mount
Through Hole
Number of Channels
1
Output Current
15mA
Output Type
Fixed
Output Voltage
10V
Packaging
Bulk
Reach SVHC Compliant
No
Reference Type
Shunt, Fixed
Reference Voltage
10V
RoHS Compliant
Yes
Thickness
3.6mm
Tolerance
1%
Width
4.19mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments LM4040DIZ-10.0/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM4040DIZ-10.0/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

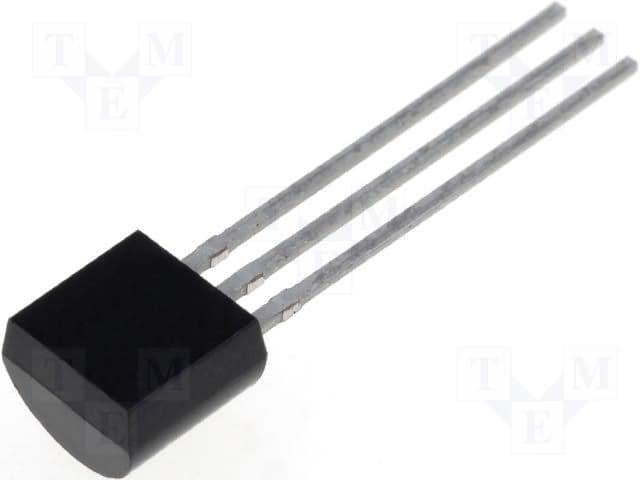

Product Images
