Precision micropower shunt voltage reference, fixed 5V output. Features 100-ppm/°C temperature stability and 1% tolerance. Operates with a cathode current as low as 85µA, supporting up to 15mA output current. Packaged in a TO-92 through-hole mount configuration, suitable for a wide operating temperature range of -40°C to 85°C. RoHS compliant and lead-free.
PackageTO-92
Voltage5V
Current15mA
MountingThrough Hole
Quick Jump:
Technical Specifications
Texas Instruments LM4040DIZ-5.0/NOPB technical specifications.
General
Package/Case
TO-92
Cathode Current
85uA
Current
15mA
Height
5.2mm
Lead Free
Lead Free
Length
5.2mm
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
15mA
Max Output Voltage
5V
Min Output Voltage
5V
Mount
Through Hole
Number of Channels
1
Output Current
15mA
Output Type
Fixed
Output Voltage
5V
Package Quantity
1800
Packaging
Bulk
Radiation Hardening
No
Reach SVHC Compliant
No
Reference Type
Shunt, Fixed
Reference Voltage
5V
RoHS Compliant
Yes
Tolerance
1%
Voltage
5V
Width
4.19mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments LM4040DIZ-5.0/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM4040DIZ-5.0/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

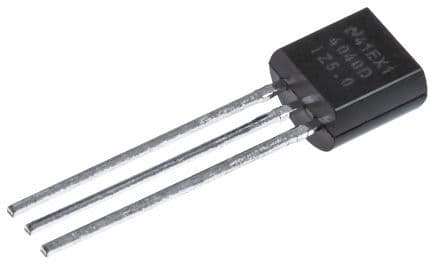

Product Images
