Precision micropower shunt voltage reference offering a fixed 2.5V output with 100-ppm/°C temperature stability. Designed for surface mount applications in a compact SOT-23 package, it operates with a cathode current as low as 70µA and supports an output current up to 15mA. This component features a maximum input voltage of 2.5V and operates across a wide temperature range of -40°C to 85°C. Ideal for power management circuits requiring stable voltage references.
PackageSOT-23
Current Rating15A
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments LM4040EIM3-2.5/NOPB technical specifications.
General
Package/Case
SOT-23
Cathode Current
70uA
Current Rating
15A
Height
0.93mm
Lead Free
Lead Free
Length
2.92mm
Max Input Voltage
2.5V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
15mA
Max Output Voltage
2.5V
Min Output Voltage
2.5V
Mount
Surface Mount
Nominal Supply Current
65mA
Number of Channels
1
Output Current
15mA
Output Type
Fixed
Output Voltage
2.5V
Package Quantity
1000
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
Reference Type
Shunt
Reference Voltage
2.5V
Termination
SMD/SMT
Thickness
1mm
Tolerance
2%
Width
1.3mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments LM4040EIM3-2.5/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM4040EIM3-2.5/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

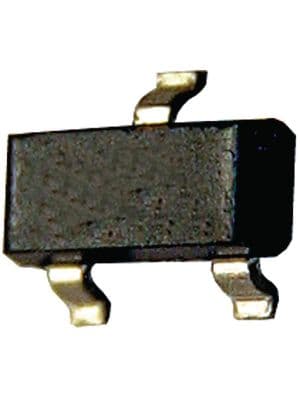

Product Images
