Precision micropower shunt voltage reference, offering a fixed 1.225V output with 0.1% tolerance. Features a low operating current of 45µA and a maximum output current of 12mA. Encased in a compact SOT-23 surface mount package, this component operates across a wide temperature range of -40°C to 85°C. RoHS compliant and lead-free, it is supplied on tape and reel.
PackageSOT-23
Current Rating12mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments LM4041AIM3-1.2/NOPB technical specifications.
General
Package/Case
SOT-23
Current Rating
12mA
Height
0.93mm
Lead Free
Lead Free
Length
2.92mm
Max Input Voltage
1.2V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
12mA
Max Output Voltage
1.225V
Max Power Dissipation
306mW
Mount
Surface Mount
Nominal Supply Current
60mA
Number of Channels
1
Output Current
12mA
Output Voltage
1.225V
Package Quantity
1000
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
Reference Type
Shunt, Fixed
Reference Voltage
1.225V
RoHS Compliant
Yes
Series
LM4041-N
Termination
SMD/SMT
Tolerance
0.1%
Width
1.3mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments LM4041AIM3-1.2/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM4041AIM3-1.2/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

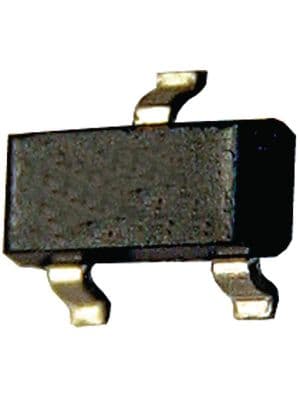

Product Images
