Precision series voltage reference IC, outputting a fixed 3.3V with 0.2% tolerance and a low temperature drift of 50 ppm/°C. Features a maximum input voltage of 14V and a minimum of 2V, with a dropout voltage of 180mV. Operates with a typical supply current of 160µA and can source up to 5mA of output current. Packaged in a 5-SOT-23 surface mount configuration, suitable for operation between -40°C and 85°C.
PackageSOT-23
Current160uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments LM4120AIM5-3.3 technical specifications.
General
Package/Case
SOT-23
Dropout Voltage
180mV
Lead Free
Contains Lead
Max Input Voltage
14V
Min Input Voltage
2V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
5mA
Max Output Voltage
3.3V
Min Output Voltage
3.3V
Max Power Dissipation
350mW
Mount
Surface Mount
Operating Supply Current
275uA
Output Current
5mA
Output Type
Fixed
Output Voltage
3.3V
Package Quantity
1000
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
Reference Type
Series
Reference Voltage
3.3V
RoHS Compliant
No
Supply Current
160uA
Tolerance
0.2%
Compliance
RoHS
Not CompliantNo
Datasheet
Texas Instruments LM4120AIM5-3.3 Datasheet
Download the complete datasheet for Texas Instruments LM4120AIM5-3.3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

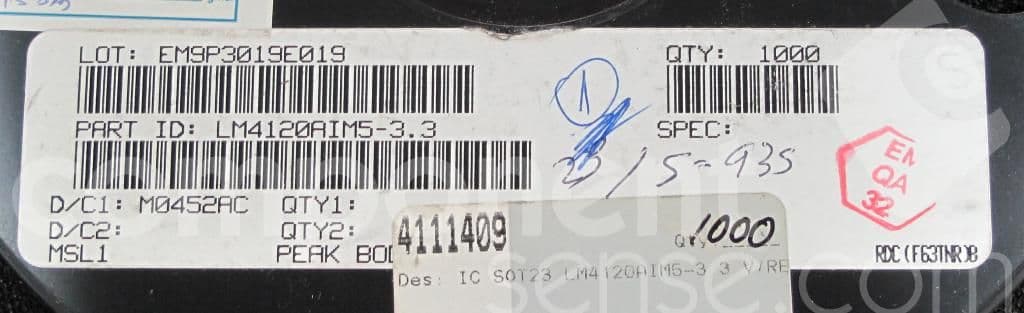

Product Images
