Texas Instruments
LM4128CQ1MF3.3/NOPB

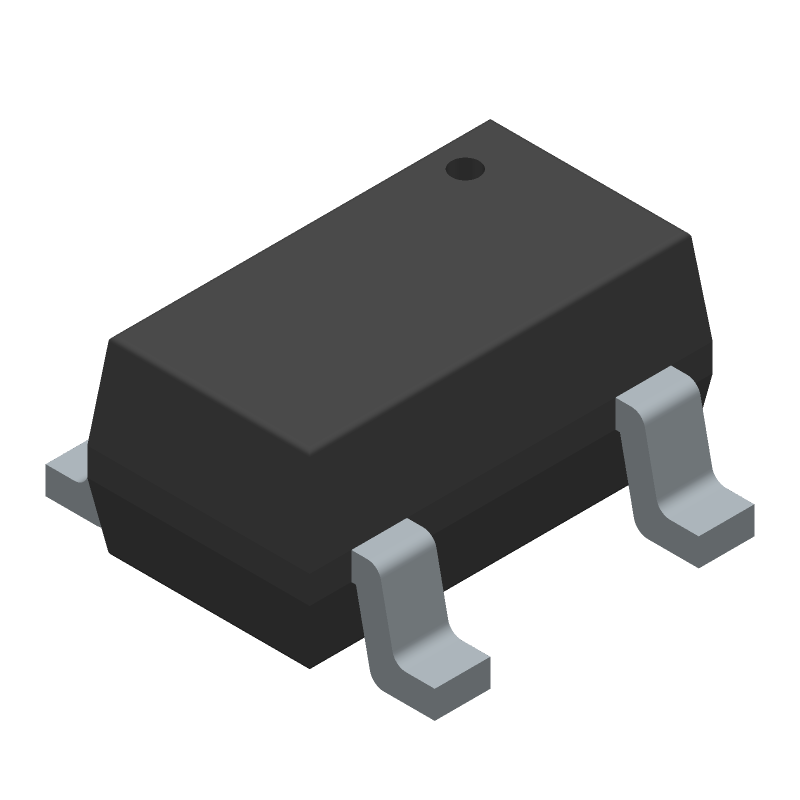

Automotive 0.1% 75-ppm/°C SOT-23 precision micropower series voltage reference shutdown enable pin 5-SOT-23 -40 to 125
PackageSOT-23
Current60uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments LM4128CQ1MF3.3/NOPB technical specifications.
General
| Package/Case | SOT-23 |
| Lead Free | Lead Free |
| Max Input Voltage | 6V |
| Min Input Voltage | 2.2V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 20mA |
| Max Output Voltage | 3.3V |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Output Current | 20mA |
| Output Voltage | 3.3V |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Quiescent Current | 100uA |
| Radiation Hardening | No |
| Reference Type | Series |
| RoHS Compliant | Yes |
| Series | PowerWise® |
| Supply Current | 60uA |
| Tolerance | 0.5% |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments LM4128CQ1MF3.3/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM4128CQ1MF3.3/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
