Precision micropower low dropout voltage reference with a 4.096V output voltage and 0.1% tolerance. Features a 195mV dropout voltage and 8mA maximum output current. Operates from a 1.8V to 5.6V input voltage range. Surface mountable in an 8-SOIC package, with a quiescent current of 350µA. Designed for operation between 0°C and 70°C.
PackageSOIC
Current265uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments LM4140ACM-4.1 technical specifications.
General
Package/Case
SOIC
Dropout Voltage
195mV
Height
1.45mm
Lead Free
Contains Lead
Length
4.9mm
Max Input Voltage
5.6V
Min Input Voltage
1.8V
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Output Current
8mA
Mount
Surface Mount
Number of Channels
1
Output Current
8mA
Output Voltage
4.096V
Package Quantity
95
Packaging
Rail/Tube
Quiescent Current
350uA
Radiation Hardening
No
Reference Type
Series
RoHS Compliant
No
Series
LM4140
Supply Current
265uA
Tolerance
0.1%
Width
3.9mm
Compliance
RoHS
Not CompliantNo
Datasheet
Texas Instruments LM4140ACM-4.1 Datasheet
Download the complete datasheet for Texas Instruments LM4140ACM-4.1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

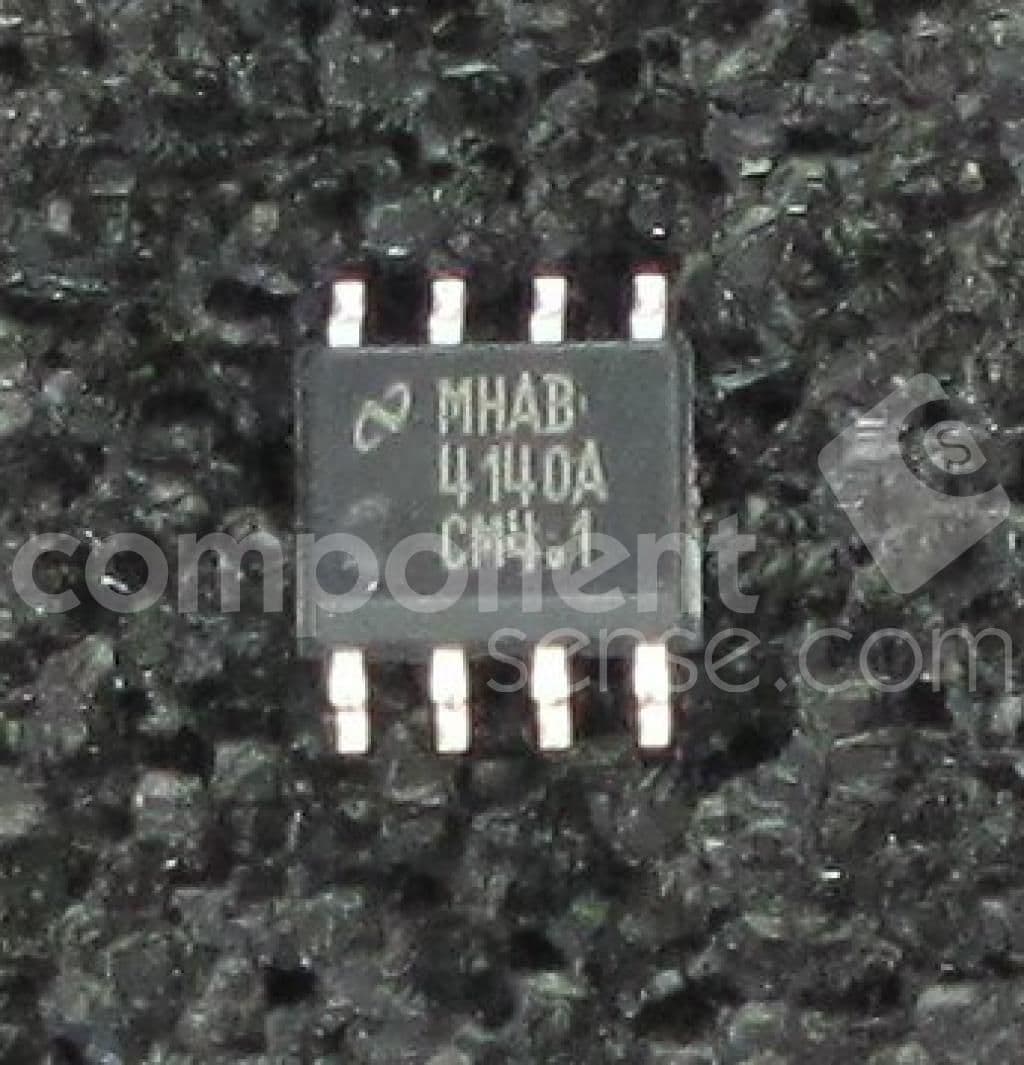

Product Images
