Texas Instruments
LM46002PWP
3.5V to 60V, 2A Synchronous Step-Down Voltage Converter 16-HTSSOP -40 to 125
PackageHTSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments LM46002PWP technical specifications.
General
| Package/Case | HTSSOP |
| Lead Free | Lead Free |
| Max Input Voltage | 60V |
| Min Input Voltage | 3.5V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 2A |
| Max Output Voltage | 28V |
| Min Output Voltage | 1V |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Operating Supply Voltage | 60V |
| Output Configuration | Positive |
| Output Current | 2A |
| Output Type | Adjustable |
| Output Voltage | 28V |
| Packaging | Rail/Tube |
| Quiescent Current | 27uA |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | SIMPLE SWITCHER® |
| Synchronous Rectifier | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments LM46002PWP Datasheet
Download the complete datasheet for Texas Instruments LM46002PWP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

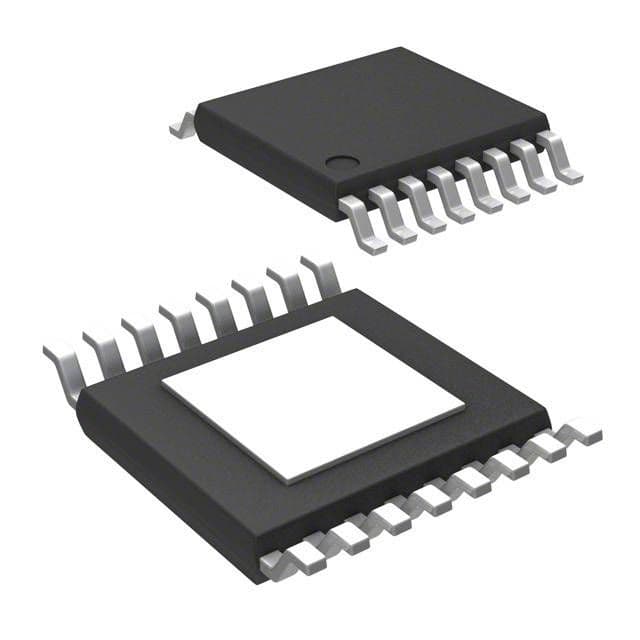

Product Images
