Texas Instruments
LM4917MTX/NOPB
LM4917 Ground-Referenced, 95mW Stereo Headphone Amplifier 14-TSSOP -40 to 85
PackageTSSOP
MountingSurface Mount
Power95mW
Quick Jump:
Technical Specifications
Texas Instruments LM4917MTX/NOPB technical specifications.
General
| Package/Case | TSSOP |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Power | 95mW |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 1.4V |
| Mount | Surface Mount |
| Number of Channels | 2 |
| Operating Supply Voltage | 3V |
| Output Power | 95mW |
| Package Quantity | 2500 |
| Packaging | Tape and Reel |
| Power Supply Rejection Ratio (PSRR) | 70dB |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | Boomer® |
| Supply Type | Single |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments LM4917MTX/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM4917MTX/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

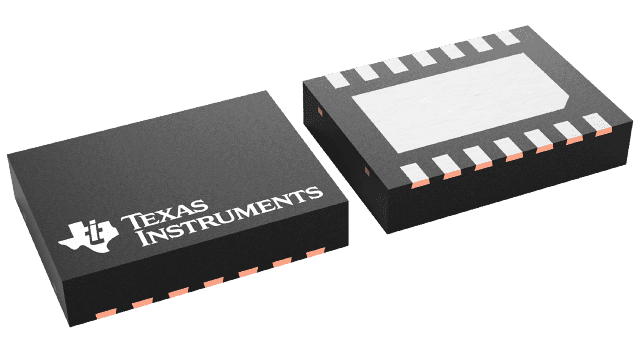

Product Images
