Texas Instruments
LM49370RL/NOPB
Boomer Aud Pwr Amp & Sub-Sys w/ an Ultra Low EMI Sprd Spectrum Class D Loudspkr Amp 49-DSBGA -40 to 85
Current15.5mA
MountingSurface Mount
Power1.2W
Quick Jump:
Technical Specifications
Texas Instruments LM49370RL/NOPB technical specifications.
General
Dual Supply Voltage
5V
Features
I²C
Lead Free
Lead Free
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Power
1.2W
Max Supply Current
15.5mA
Max Supply Voltage
5.5V
Min Supply Voltage
1.8V
Mount
Surface Mount
Number of A/D Converters
1
Output Power
1.2W
Package Quantity
250
Packaging
Tape and Reel
Power Consumption
45.5mW
Power Supply Rejection Ratio (PSRR)
86dB
Radiation Hardening
No
RoHS Compliant
Yes
Series
Boomer®, PowerWise®
Supply Current
15.5mA
Supply Type
Quint
Compliance
RoHS
Compliant
Datasheet
Texas Instruments LM49370RL/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM49370RL/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

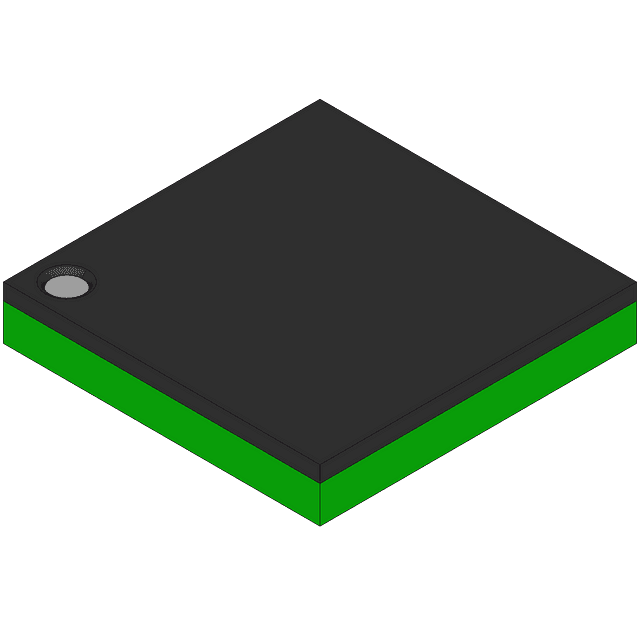

Product Images
