Texas Instruments
LM4951SDX/NOPB
1.8-W, mono, 2.7- to 9-V, analog input Class-AB audio amplifer 10-WSON
MountingSurface Mount
Power1.8W
Quick Jump:
Technical Specifications
Texas Instruments LM4951SDX/NOPB technical specifications.
General
Input Offset Voltage (Vos)
30mV
Lead Free
Lead Free
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Power
1.8W
Max Supply Voltage
9V
Min Supply Voltage
2.7V
Mount
Surface Mount
Operating Supply Voltage
5V
Output Power
1.8W
Package Quantity
4500
Packaging
Tape and Reel
Power Supply Rejection Ratio (PSRR)
66dB
Radiation Hardening
No
RoHS Compliant
Yes
Series
Boomer®
Supply Type
Single
Compliance
RoHS
Compliant
Datasheet
Texas Instruments LM4951SDX/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM4951SDX/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

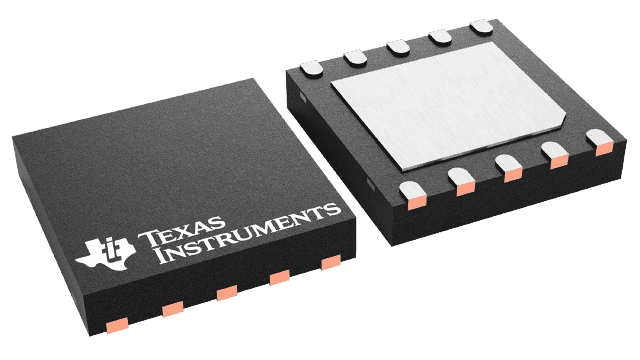

Product Images
