Texas Instruments
LM5000SDX-3/NOPB
3.1-40V Wide Vin, 2A Current Mode Non-Synchronous Boost Regulator 16-WSON -40 to 125
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments LM5000SDX-3/NOPB technical specifications.
General
Efficiency
90%
Lead Free
Lead Free
Max Input Voltage
40V
Min Input Voltage
3.1V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Voltage
80V
Min Output Voltage
3.1V
Mount
Surface Mount
Number of Outputs
1
Operating Supply Voltage
40V
Output Configuration
Positive
Output Current
1.35A
Output Type
Adjustable
Output Voltage
1.295V
Package Quantity
4500
Packaging
Tape and Reel
Quiescent Current
2.1mA
Radiation Hardening
No
RoHS Compliant
Yes
Synchronous Rectifier
No
Topology
Boost, Flyback, Forward Converter
Compliance
RoHS
Compliant
Datasheet
Texas Instruments LM5000SDX-3/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM5000SDX-3/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

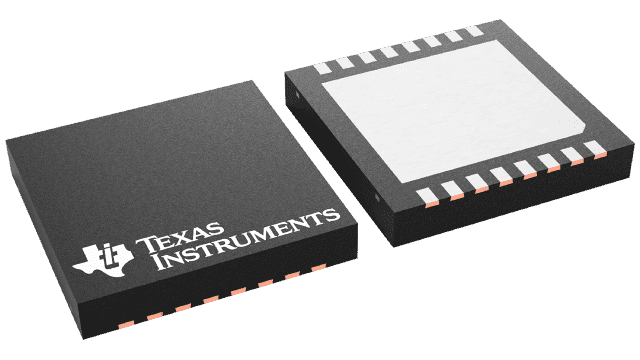

Product Images
