Constant On-Time Non-Synchronous Buck Regulator, featuring an 8V to 75V wide input voltage range and 1A maximum output current. This power management IC offers an adjustable output voltage up to 70V with a minimum of 2.5V, achieving up to 91% efficiency. Packaged in a 14-HTSSOP with dimensions of 5mm x 4.4mm x 1.2mm, it operates from -40°C to 125°C. The device is designed for surface mounting and includes a quiescent current of 650µA.
PackageHTSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments LM5010MH technical specifications.
General
Package/Case
HTSSOP
Efficiency
91%
Height
1.2mm
Lead Free
Contains Lead
Length
5mm
Max Input Voltage
75V
Min Input Voltage
8V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
1A
Max Output Voltage
70V
Min Output Voltage
2.5V
Mount
Surface Mount
Number of Outputs
1
Operating Supply Voltage
7.4V
Output Configuration
Positive
Output Current
1A
Output Type
Adjustable
Output Voltage
70V
Package Quantity
94
Packaging
Rail/Tube
Quiescent Current
650uA
Radiation Hardening
No
RoHS Compliant
No
Synchronous Rectifier
No
Thickness
1mm
Width
4.4mm
Compliance
RoHS
Not CompliantNo
Datasheet
Texas Instruments LM5010MH Datasheet
Download the complete datasheet for Texas Instruments LM5010MH to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

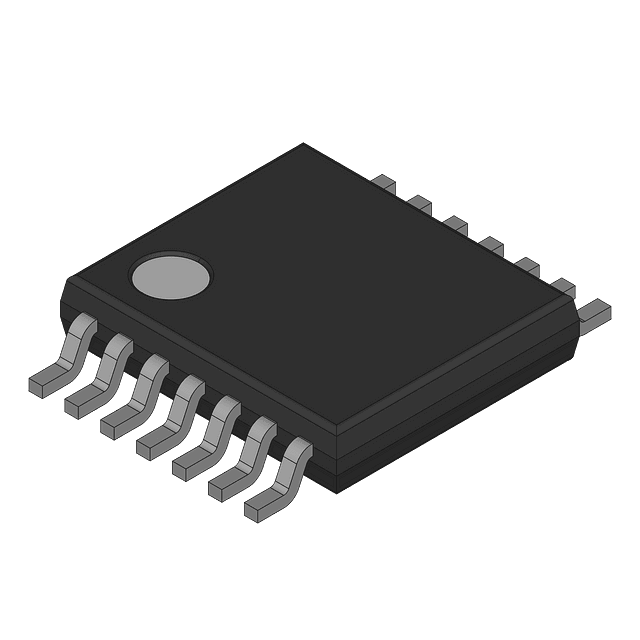

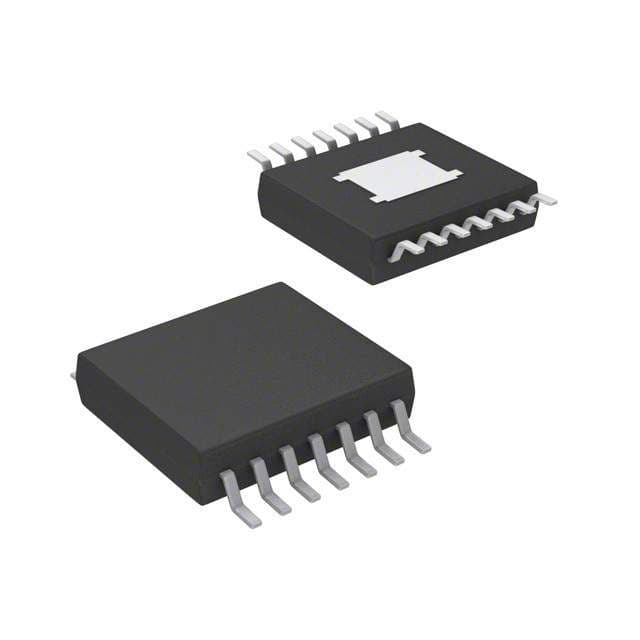

Product Images
