Texas Instruments
LM6172AMJ-QML
Dual High Speed, Low Power, Low Distortion Voltage Feedback Amplifiers 8-CDIP -55 to 125
PackageCDIP
MountingThrough Hole
Quick Jump:
Technical Specifications
Texas Instruments LM6172AMJ-QML technical specifications.
General
Package/Case
CDIP
Common Mode Rejection Ratio
70dB
Gain Bandwidth Product
80MHz
Lead Free
Contains Lead
Max Dual Supply Voltage
18V
Min Dual Supply Voltage
2.75V
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Supply Voltage
36V
Min Supply Voltage
5.5V
Mount
Through Hole
Number of Channels
2
RoHS Compliant
No
Compliance
RoHS
Not Compliant
Datasheet
Texas Instruments LM6172AMJ-QML Datasheet
Download the complete datasheet for Texas Instruments LM6172AMJ-QML to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

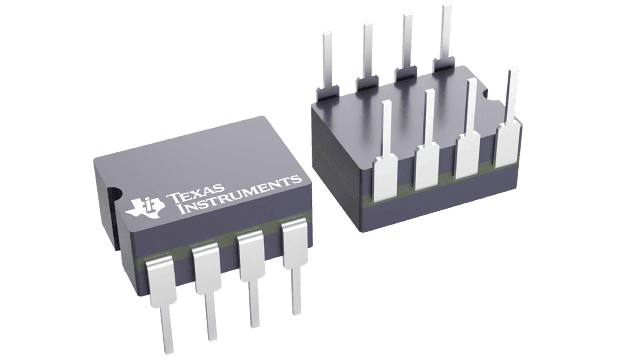

Product Images
