The LM628N-8 is a 28-pin DIP power management IC from Texas Instruments. It is available in a PDIP package with a height of 4.19mm, length of 36.07mm, and width of 12.95mm. The device is designed for through hole and surface mount applications and is packaged in rail/Tube. It operates over a supply voltage range of 4.5V to 5.5V. The LM628N-8 is not radiation hardened and is not RoHS compliant due to the presence of lead.
PackagePDIP
MountingThrough Hole, Surface Mount
Quick Jump:
Technical Specifications
Texas Instruments LM628N-8 technical specifications.
General
| Package/Case | PDIP |
| Height | 4.19mm |
| Interface | Parallel |
| Lead Free | Contains Lead |
| Length | 36.07mm |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 4.5V |
| Mount | Through Hole, Surface Mount |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| RoHS Compliant | No |
| Width | 12.95mm |
Compliance
| RoHS | Not CompliantNo |
Datasheet
Texas Instruments LM628N-8 Datasheet
Download the complete datasheet for Texas Instruments LM628N-8 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

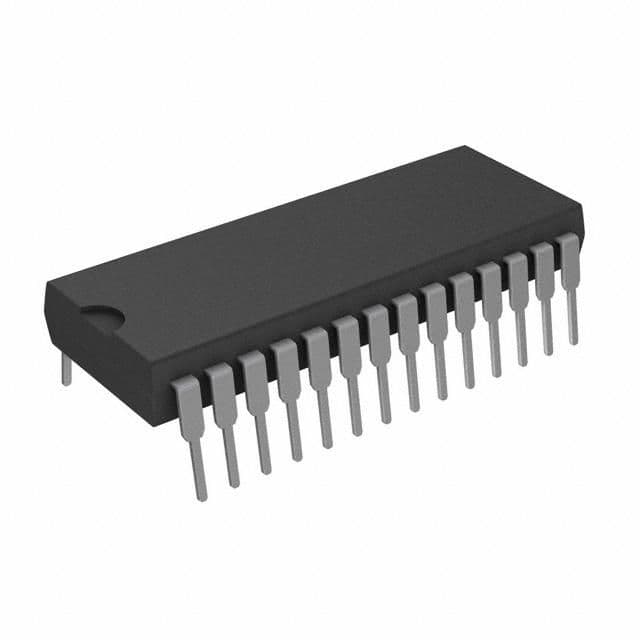

Product Images
