Texas Instruments
LM7171AMWFQMLV
Very High Speed, High Output Current, Voltage Feedback Amplifier 10-CFP -55 to 125
Current6.5mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments LM7171AMWFQMLV technical specifications.
General
Common Mode Rejection Ratio
80dB
Gain Bandwidth Product
200MHz
Input Bias Current
12uA
Input Offset Voltage (Vos)
4mV
Lead Free
Contains Lead
Max Dual Supply Voltage
18V
Min Dual Supply Voltage
2.75V
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Supply Voltage
36V
Min Supply Voltage
5.5V
Mount
Surface Mount
Number of Channels
1
Operating Supply Voltage
18V
Output Current
100mA
Packaging
Rail/Tube
Radiation Hardening
Yes
RoHS Compliant
No
Slew Rate
4100V/µs
Supply Current
6.5mA
Voltage Gain
75dB
Compliance
RoHS
Not CompliantYes
Datasheet
Texas Instruments LM7171AMWFQMLV Datasheet
Download the complete datasheet for Texas Instruments LM7171AMWFQMLV to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

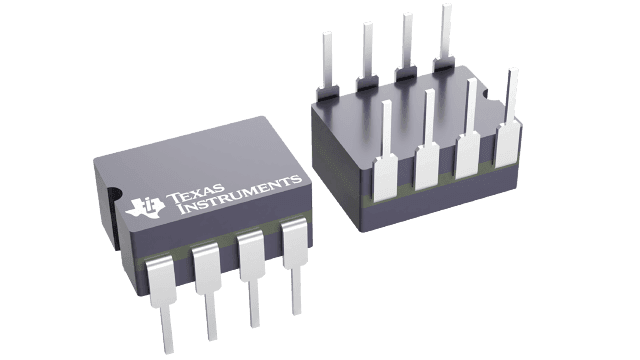

Product Images
