Dual-channel, general-purpose operational amplifier featuring rail-to-rail input and output. This CMOS device offers a 20MHz bandwidth and 100mA output current per channel, supporting unlimited capacitive loads. Operating from a minimum supply voltage of 1.25V up to a maximum of 32V, it boasts a 700µV input offset voltage and 1.1µA input bias current. Packaged in an 8-VSSOP (MSOP) surface-mount configuration, it operates across a temperature range of -40°C to 125°C.
PackageMSOP
Current2mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments LM7322MME/NOPB technical specifications.
General
Amplifier Type
GENERAL PURPOSE
Bandwidth
20MHz
Package/Case
MSOP
Common Mode Rejection Ratio
65dB
Gain Bandwidth Product
20MHz
Height
0.86mm
Input Bias Current
1.1uA
Input Offset Voltage (Vos)
700uV
Lead Free
Lead Free
Length
3mm
Max Dual Supply Voltage
16V
Min Dual Supply Voltage
1.25V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
32V
Min Supply Voltage
2.5V
Mount
Surface Mount
Number of Amplifiers
2
Number of Channels
2
Number of Circuits
2
Number of Elements
2
Operating Supply Current
2.5mA
Operating Supply Voltage
16V
Output Current
100mA
Output Current per Channel
100mA
Package Quantity
250
Packaging
Tape and Reel
Power Supply Rejection Ratio (PSRR)
78dB
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PowerWise®
Slew Rate
18V/µs
Supply Current
2mA
Technology
CMOS
Unity Gain Bandwidth Product
16MHz
Voltage Gain
80dB
Width
3mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments LM7322MME/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM7322MME/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

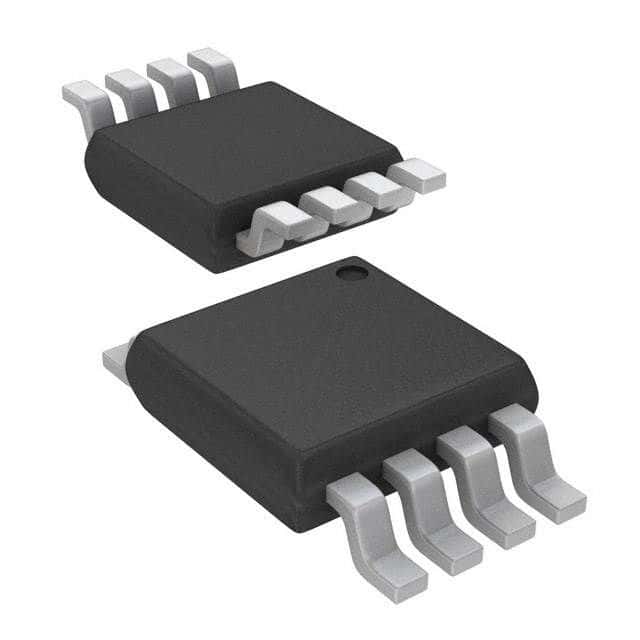

Product Images
