Dual rail-to-rail input/output operational amplifier featuring a 7.5MHz bandwidth and 21MHz gain bandwidth product. This general-purpose amplifier offers a wide operating voltage range from 1.25V to 32V, with a dual supply voltage capability up to 16V. Delivering 70mA output current per channel, it boasts a 15.2V/µs slew rate and 78dB PSRR. Packaged in an 8-VSSOP for surface mounting, it operates from -40°C to 125°C.
PackageMSOP
Current2mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments LM7332MME/NOPB technical specifications.
General
Amplifier Type
GENERAL PURPOSE
Bandwidth
7.5MHz
Package/Case
MSOP
Common Mode Rejection Ratio
62dB
Dual Supply Voltage
9V
Gain Bandwidth Product
21MHz
Height
0.86mm
Input Bias Current
1uA
Input Offset Voltage (Vos)
2mV
Lead Free
Lead Free
Length
3mm
Max Dual Supply Voltage
16V
Min Dual Supply Voltage
1.25V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
55mA
Max Supply Voltage
32V
Min Supply Voltage
2.5V
Mount
Surface Mount
Number of Amplifiers
2
Number of Channels
2
Number of Circuits
2
Number of Elements
2
Operating Supply Current
2mA
Operating Supply Voltage
16V
Output Current
70mA
Output Current per Channel
70mA
Package Quantity
250
Packaging
Tape and Reel
Power Supply Rejection Ratio (PSRR)
78dB
Radiation Hardening
No
Reach SVHC Compliant
No
Slew Rate
15.2V/µs
Supply Current
2mA
Unity Gain Bandwidth Product
19.3MHz
Voltage Gain
77dB
Width
3mm
Compliance
RoHS
Not CompliantNo
Datasheet
Texas Instruments LM7332MME/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM7332MME/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

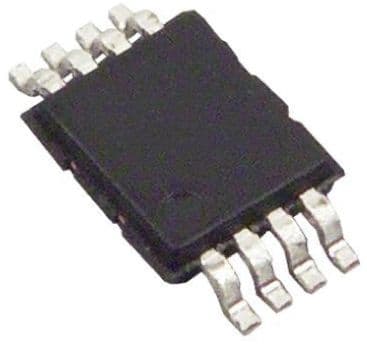

Product Images
