Dual rail-to-rail input/output operational amplifier featuring a 21MHz gain bandwidth product and 15.2V/µs slew rate. This general-purpose amplifier operates from a wide supply voltage range of 1.25V to 32V, with a maximum dual supply voltage of 16V. It offers 70mA output current per channel and boasts a 78dB power supply rejection ratio. Packaged in an 8-VSSOP for surface mounting, it operates across a temperature range of -40°C to 125°C.
PackageMSOP
Current2mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments LM7332MMX/NOPB technical specifications.
General
Amplifier Type
GENERAL PURPOSE
Package/Case
MSOP
Common Mode Rejection Ratio
62dB
Gain Bandwidth Product
21MHz
Input Bias Current
1uA
Input Offset Voltage (Vos)
2mV
Lead Free
Lead Free
Max Dual Supply Voltage
16V
Min Dual Supply Voltage
1.25V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
32V
Min Supply Voltage
2.5V
Mount
Surface Mount
Number of Channels
2
Number of Circuits
2
Number of Elements
2
Operating Supply Current
2mA
Operating Supply Voltage
16V
Output Current
70mA
Output Current per Channel
70mA
Package Quantity
3500
Packaging
Tape and Reel
Power Supply Rejection Ratio (PSRR)
78dB
Radiation Hardening
No
Slew Rate
15.2V/µs
Supply Current
2mA
Unity Gain Bandwidth Product
19.3MHz
Voltage Gain
77dB
Compliance
RoHS
Not CompliantNo
Datasheet
Texas Instruments LM7332MMX/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM7332MMX/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

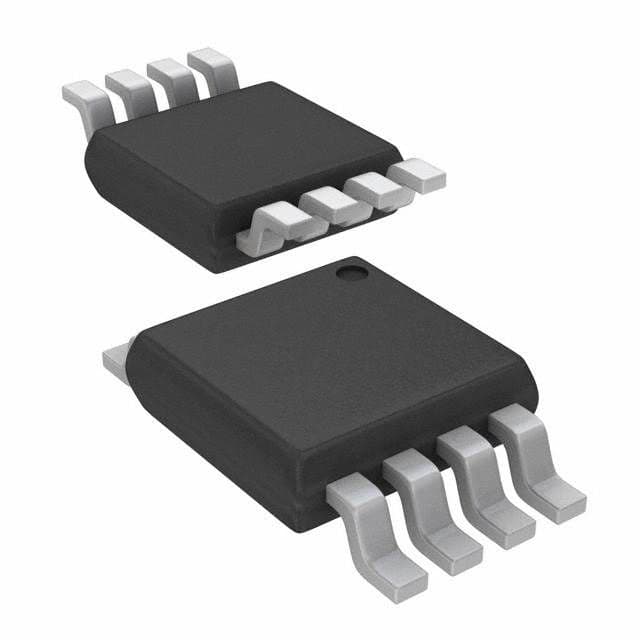

Product Images
