PackageDIP
MountingThrough Hole
Quick Jump:
Technical Specifications
Texas Instruments LM748CN technical specifications.
General
| Amplifier Type | GENERAL PURPOSE |
| Package/Case | DIP |
| Gain Bandwidth Product | 1MHz |
| Input Bias Current | 120nA |
| Input Offset Voltage (Vos) | 1mV |
| Lead Free | Contains Lead |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Mount | Through Hole |
| Number of Circuits | 1 |
| Operating Supply Current | 1.8mA |
| RoHS Compliant | No |
| Slew Rate | 0.5V/µs |
Compliance
| RoHS | Not Compliant |
Datasheet
Texas Instruments LM748CN Datasheet
Download the complete datasheet for Texas Instruments LM748CN to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

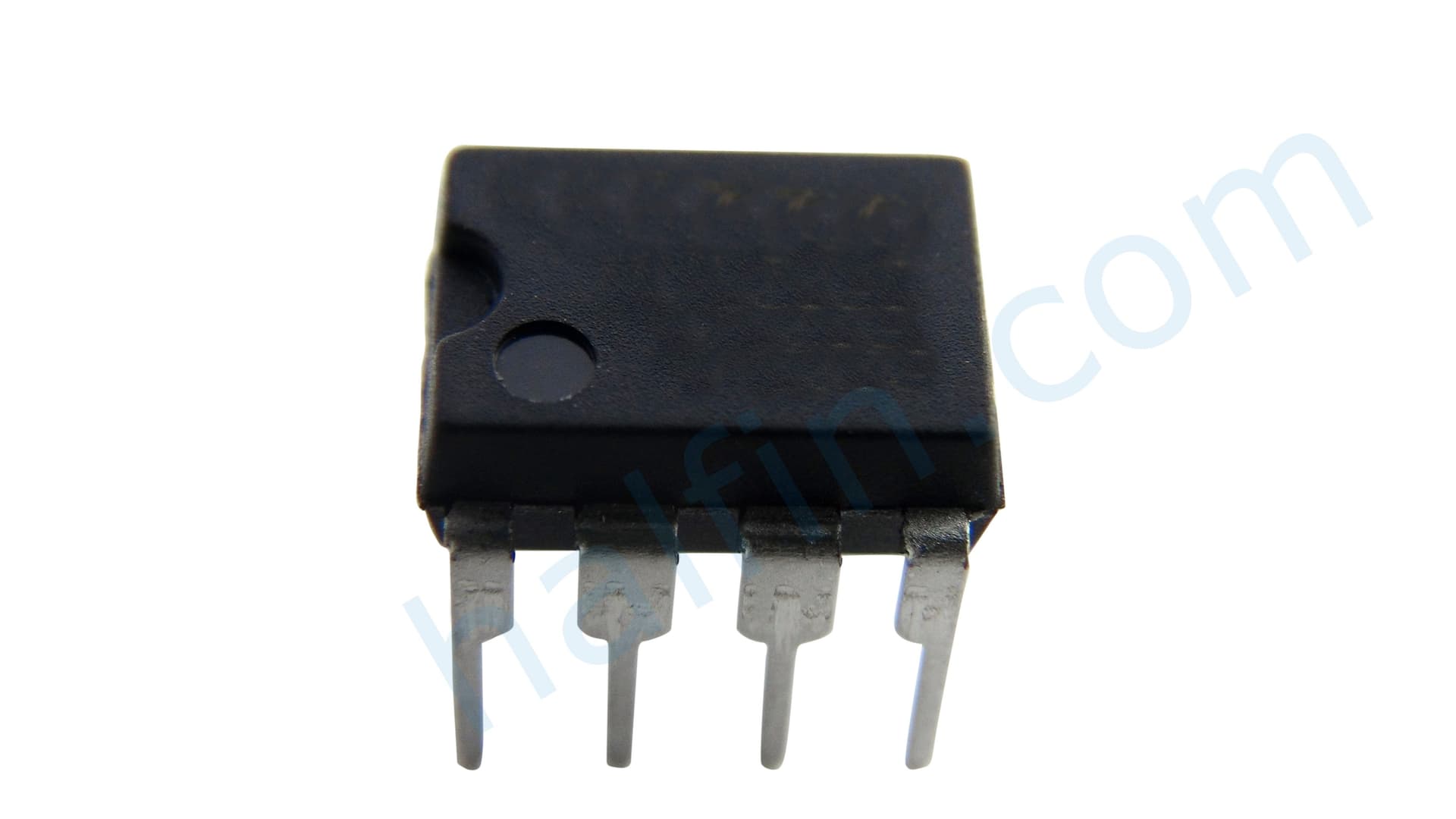

Product Images
