Positive fixed 12V linear voltage regulator, offering 1A output current with a 2V dropout voltage. Features a maximum input voltage of 35V and operates across a wide temperature range from -40°C to 125°C. This through-hole component is housed in a TO-220 package, ensuring 2% accuracy. Lead-free and RoHS compliant.
PackageTO-220
Voltage12V
MountingThrough Hole
PolarityPositive
Quick Jump:
Technical Specifications
Texas Instruments LM7812CT/NOPB technical specifications.
General
Accuracy
2%
Package/Case
TO-220
Dropout Voltage
2V
Height
8.89mm
Lead Free
Lead Free
Length
10.16mm
Max Input Voltage
35V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
1A
Mount
Through Hole
Number of Outputs
1
Output Current
1A
Output Type
Fixed
Output Voltage
12V
Package Quantity
45
Packaging
Rail/Tube
Polarity
Positive
Quiescent Current
8mA
Radiation Hardening
No
RoHS Compliant
Yes
Series
LM340-N
Voltage
12V
Width
4.7mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments LM7812CT/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM7812CT/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

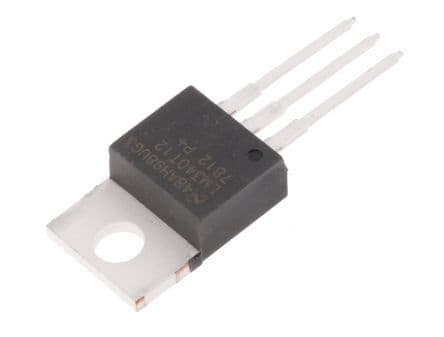

Product Images
