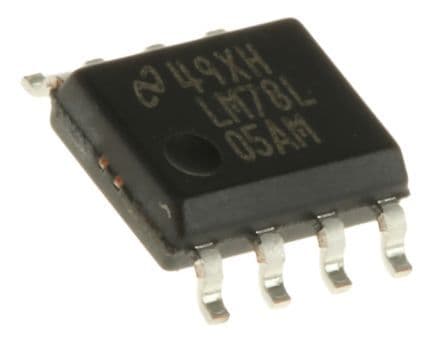

5V LDO Regulator, 100mA, 35V In, SOIC, -40 to 125C

Texas Instruments

LM78L05AIM/NOPB

Name: LM78L05AIM/NOPB Texas Instruments
Brand: Texas Instruments
SKU: LM78L05AIM/NOPB

5V LDO Regulator, 100mA, 35V In, SOIC, -40 to 125C

5V fixed positive linear voltage regulator, offering 100mA output current with a low dropout voltage of 3mV. Features a 5% output voltage accuracy and a maximum input voltage of 35V. Operates across a wide temperature range of -40°C to 125°C. Packaged in an 8-SOIC surface mount case with dimensions of 4mm length and 4mm width, and a height of 1.5mm. This RoHS compliant component boasts a power dissipation of 750mW and a Power Supply Rejection Ratio (PSRR) of 62dB.

PackageSOIC

MountingSurface Mount

PolarityPositive

Power750mW

Quick Jump:

Technical Specifications

Texas Instruments LM78L05AIM/NOPB technical specifications.

General

Accuracy	5%
Package/Case	SOIC
Dropout Voltage	3mV
Height	1.5mm
Lead Free	Lead Free
Length	4mm
Max Input Voltage	35V
Min Input Voltage	6.7V
Max Operating Temperature	125°C
Min Operating Temperature	-40°C
Max Output Current	100mA
Max Power Dissipation	750mW
Mount	Surface Mount
Nominal Output Voltage	5V
Number of Outputs	1
Output Current	100mA
Output Type	Fixed
Output Voltage	5V
Output Voltage Accuracy	5%
Package Quantity	95
Packaging	Rail/Tube
Polarity	Positive
Power Dissipation	750mW
Power Supply Rejection Ratio (PSRR)	62dB
Quiescent Current	5mA
Radiation Hardening	No
Reach SVHC Compliant	No
RoHS Compliant	Yes
Series	LM78Lxx
Width	4mm
